How to change the paper roll C7

Hardware · Troubleshooting Guide

Follow the steps to change the paper roll

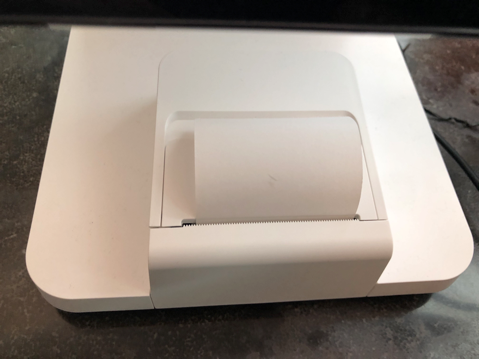

1. When the paper roll is insufficient, it is required to change the paper roll. Locate the paper roll at the front of the pos machine.

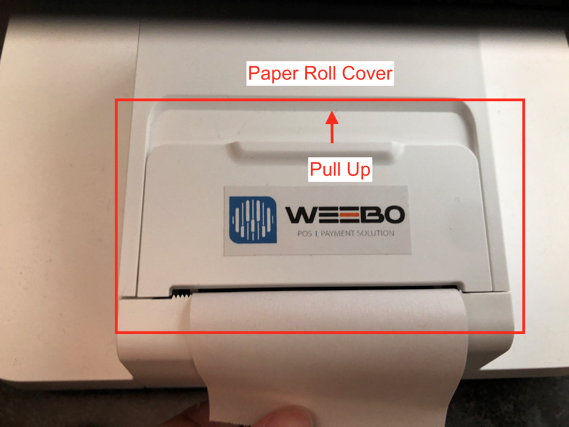

2. Pull up the paper roll cover.

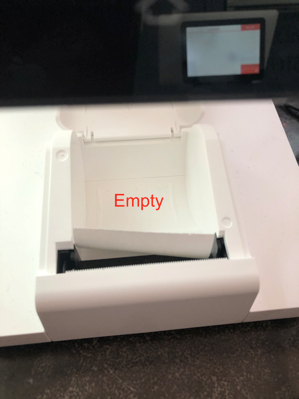

3. The cover would be opened and take out the old paper roll.

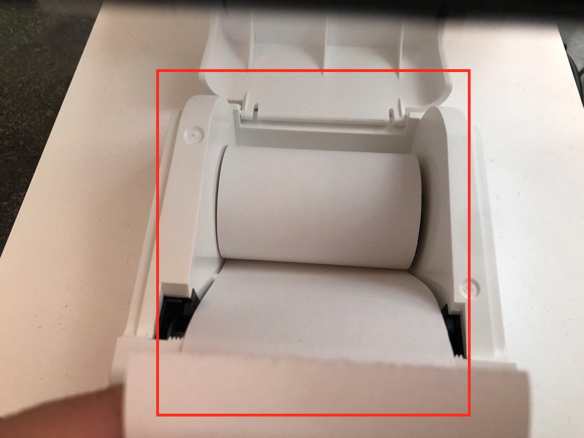

4. Place in the new paper roll in a counter clockwise direction when looking from the left of the paper roll.

5. Close the cover with a bit of the paper coming out to ensure the printer catch the paper roll properly.

6. Tear away the excess paper.
